KTY28040-1A

KTY28040-1A

Regular price $717.00 AUD
Regular price Sale price $717.00 AUD
Sale Sold out

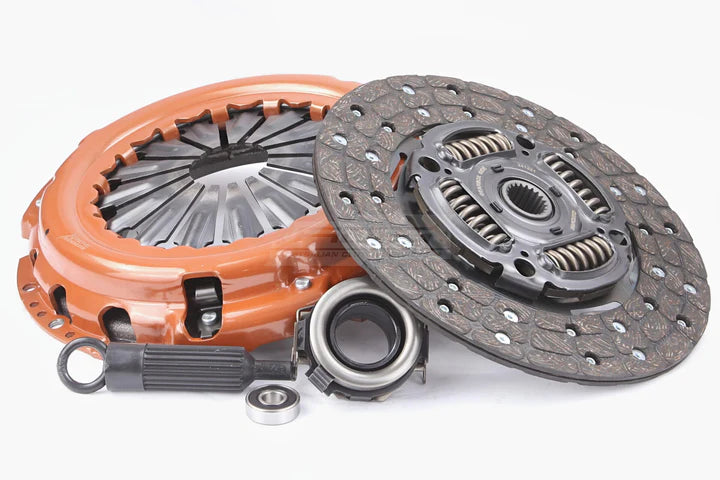

The stage 1 upgrade from Xtreme Outback is designed to provide a significant increase in torque capacity whilst retaining driveability for daily driven vehicles. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions. The 100 series kit includes heavy duty pressure plate with increased clamping force and a sprung or rigid organic friction disc depending on the application. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories as well as extra heavy duty kits for specific applications requiring an even further increase in torque capacity.





Product Specifications
SKU
KTY28040-1A
Disc Type
Sprung
Friction Material
Organic
Stage
1
Recommended Use
Street / Offroad / Towing
Flywheel Step (mm)
-4.2
Clutch Disc Diameter (mm)
275
Clutch Disc Spline Count
21
Clutch Disc Spline Diameter (mm)
29.8
Clamping Force % Increase
20%
Torque (Nm) Inc FOS
440
Spigot Bush/Bearing Included
Yes
Aligning Tool Included
Yes
Spline Grease Included
Yes
Shipping Weight
11.5
Pressure Plate Bolts Included
No
Concentric Slave Cylinder Included
No
Flywheel Bolts Included
No
Flywheel Included
No
